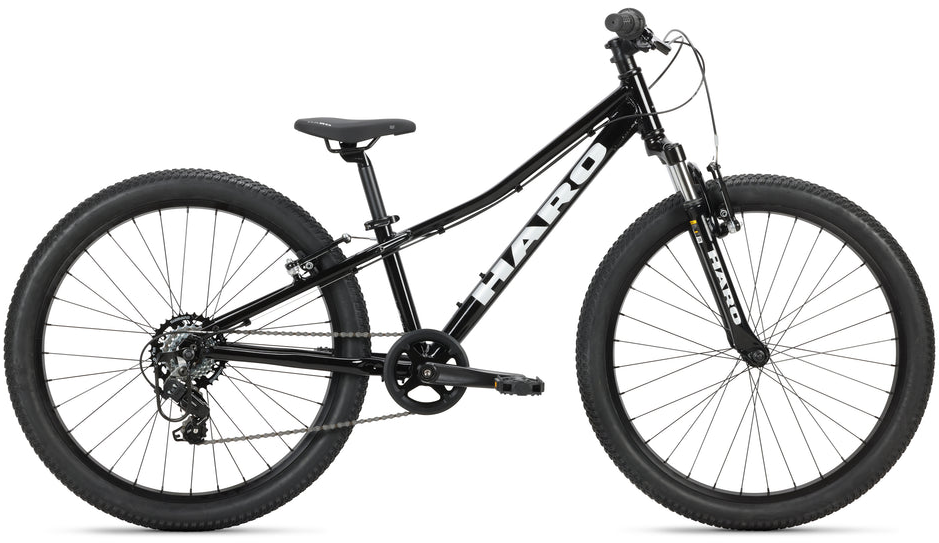

Haro Flightline 24
Details
Thanks to its lower stand-over height frame and 24" wheelset, the Flightline 24 is perfect for adventurous kids who love to ride but aren't quite ready for the larger sizes yet. The FL 24 features Haro's FL3G low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 40mm of travel. The FL 24 features a new 1x7-speed drive-train with a single chainring to make it easier to switch gears.
FEATURES
- Flightline X6 Series aluminum frame
- HL 410E 1-1/8" threadless suspension fork w/ 40mm travel
- Aluminum 3-pc 28T crankset w/ double chainguard
- Shimano Tourney 7spd Rear Derailleur
- Promax TX-121 V-Brakes W Short reach levers
- Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8
| SIZE | 24 |
|---|---|
| Seat Tube (C-T) | 271mm (10.7") |
| Top Tube (Effective) | 515mm (20.3") |
| Head Tube Angle | 69° |
| Seat Tube Angle | 73° |
| Chainstay Length | 405mm (15.9") |
| BB Drop | 30mm (1.2") |
| Wheelbase | 984mm (38.7") |
| Head Tube Length | 100mm (3.9") |
| Standover | 584mm (23") |
| Stack Height | 504mm (19.8") |
| Reach | 361mm (14.2") |
| Axle to Crown | 410mm (16.1") |
| Fork Offset | 35mm (1.4") |
| Stem Length | 45mm |
| Bar Width | 620mm |
| Crank Length | 152mm |
| Wheel Size | 24 |
| Size | Inches | CM |
|---|---|---|
| 24 | 4' - 4'8" | 122 - 142 |
Specs
| Frame | Flightline X6 Series aluminum frame |
|---|---|
| Fork | HL 410E 1-1/8" threadless suspension fork w/ 40mm travel |
| Wheels | Aluminum single wall 20" rims |
| Hubs | Steel 32H 3/8" |
| Tires | Chao Yang H-5129 24"x2.10" |
| Bottom Bracket | Cartridge Bearing 68mmX119mm |
| Crankset | Aluminum 3-pc 32T crankset w/ double chainguard |
| Shifters | Shimano SL-RV200 7-SPD Revo Shifter W window |
| Rear Derailleur | Shimano RD-TY200, Tourney 7spd |
| Cassette/Freewheel | Shimano freewheel 14-34T |
| Chain | KMC Z7 GYBR, 1/2?x3/32?x90L, 7-Spd |
| Brakes | Promax TX-121 V-Brakes |
| Brake Levers | Promax BL-81G | Short reach |
| Handlebars | Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8 |
| Tape/Grips | Krayton rubber MTB |
| Stem | 1-1/8" threadless 3D Forged Alloy 45mmL, 7° rise |
| Headset | 1-1/8" Threadless |
| Seatpost | Alloy micro adjust ø 27.2 |
| Saddle | Haro Flightline Jr |
| Pedals | MTB nylon body 9/16" |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Green / One Size / 24-inch | 691840140454 | 14045 | |
| Gloss Black / One Size / 24-inch | 691840140478 | 14047 | 210000131339 |
